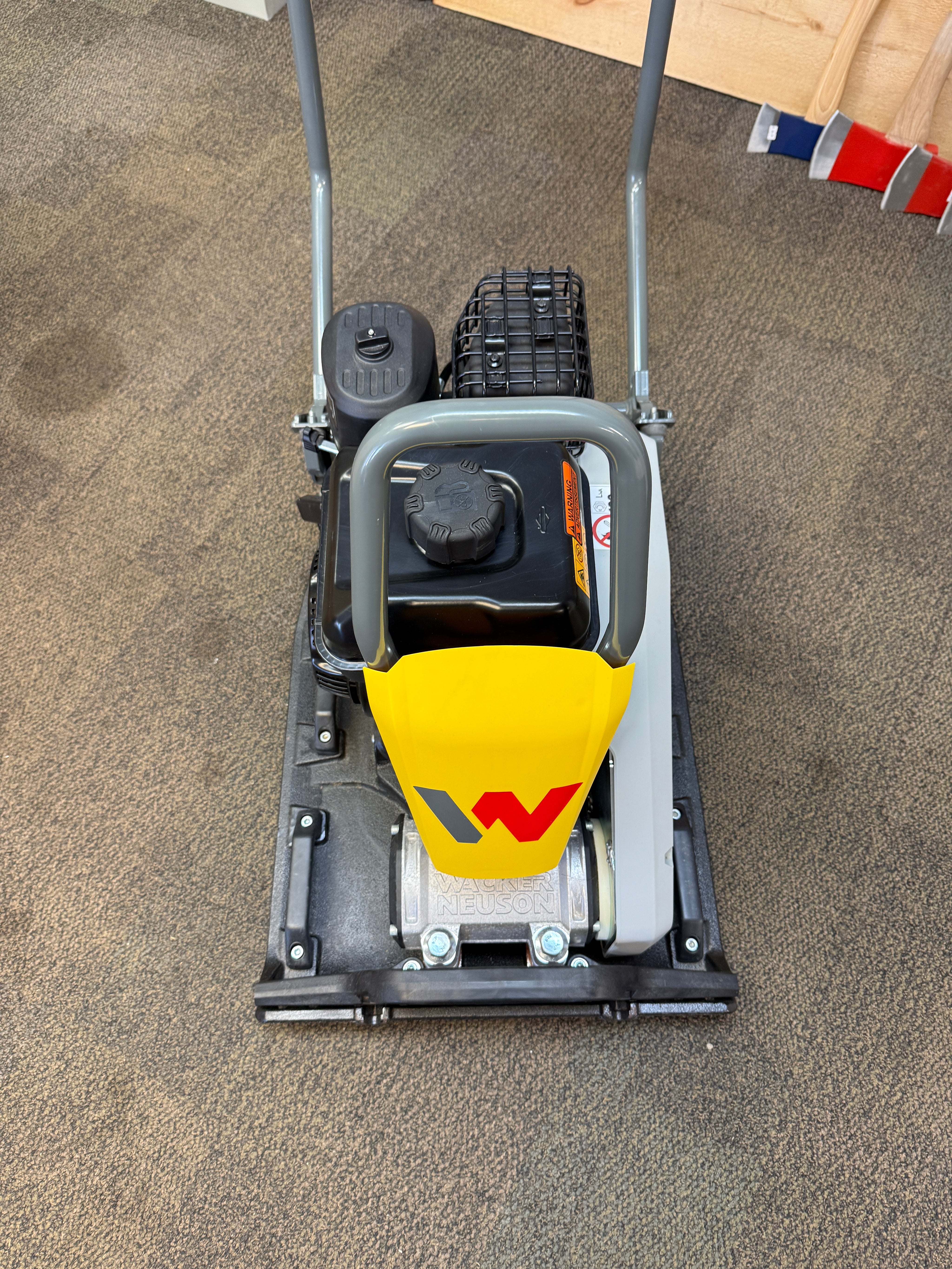

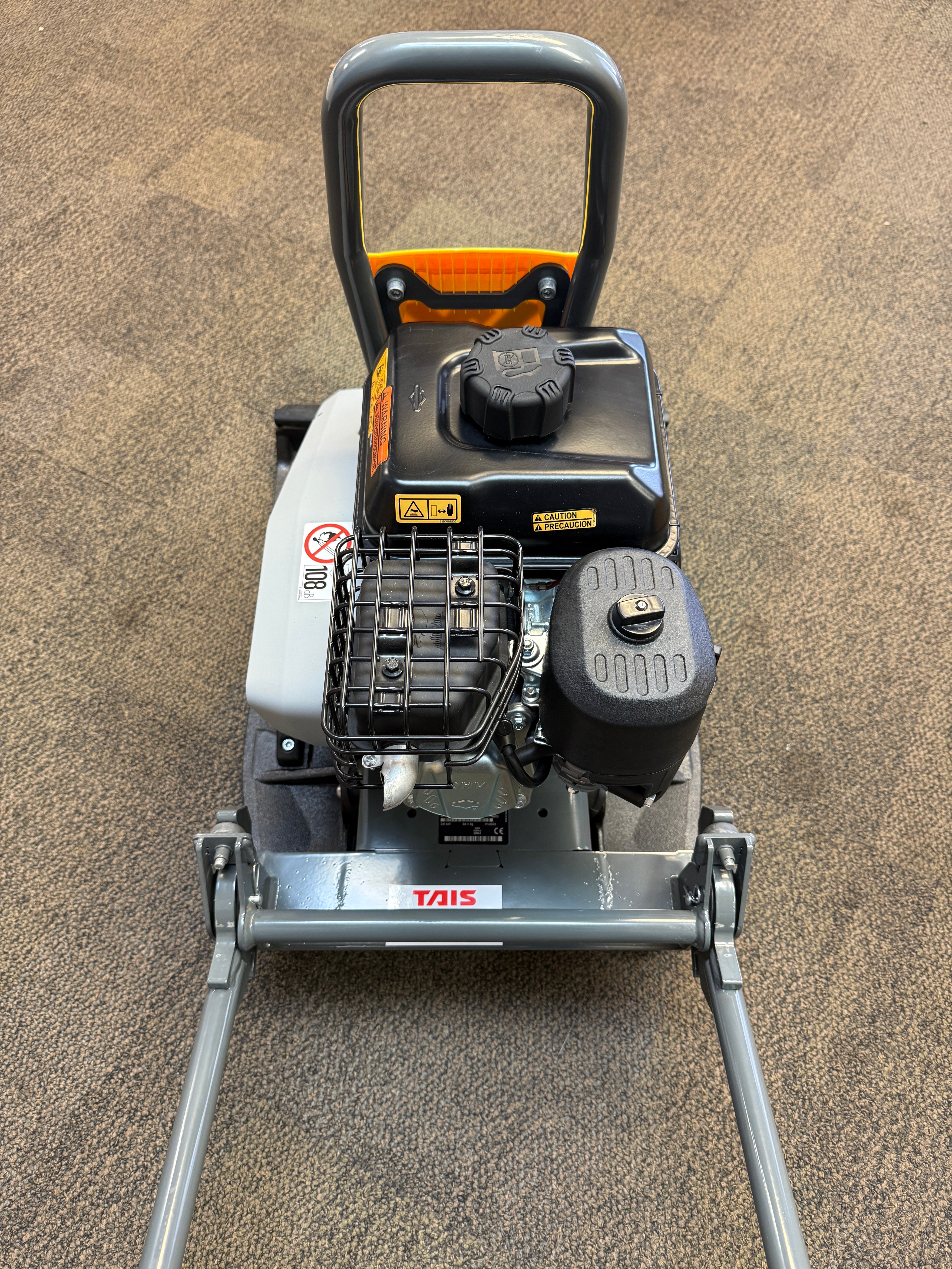

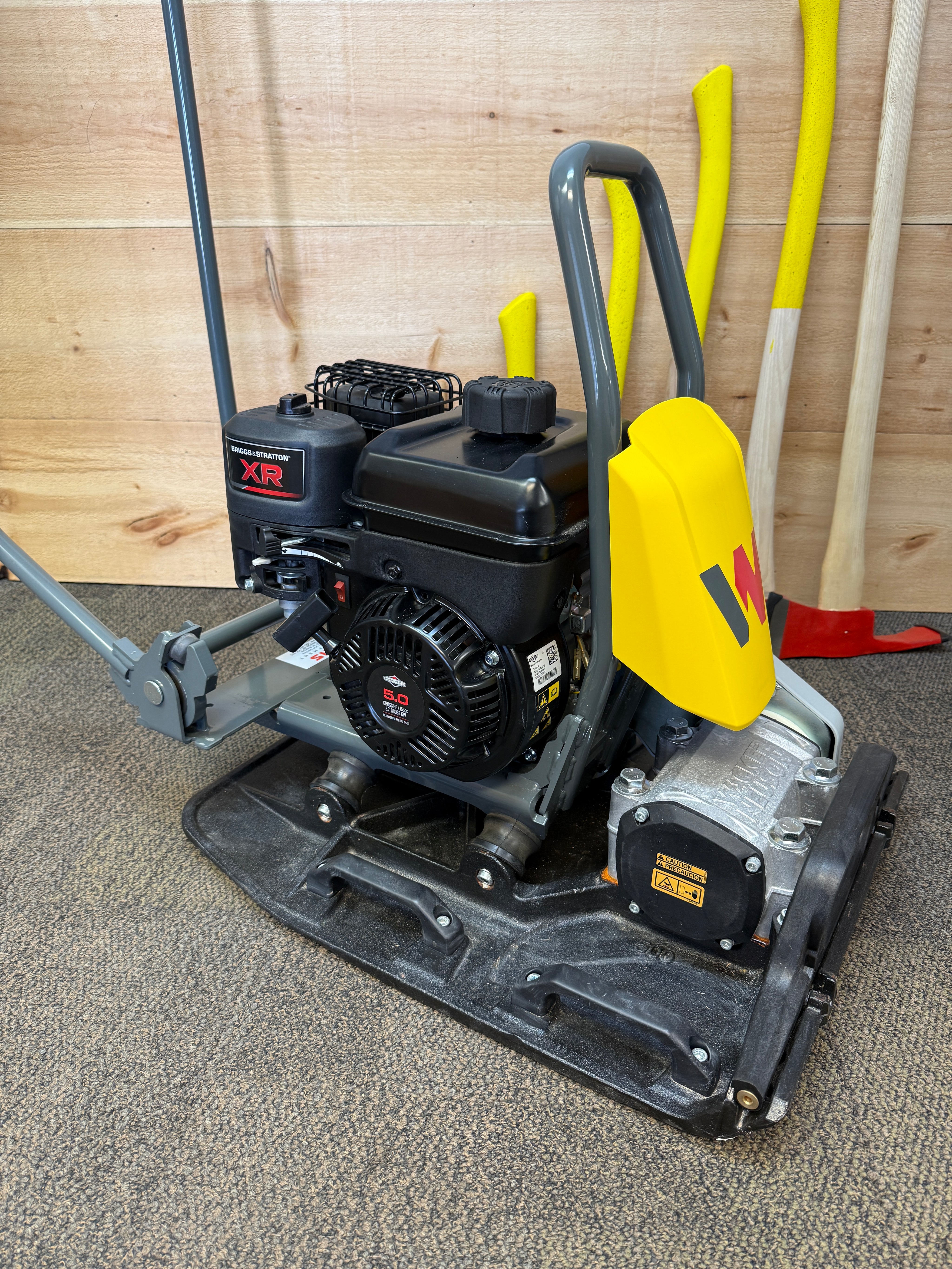

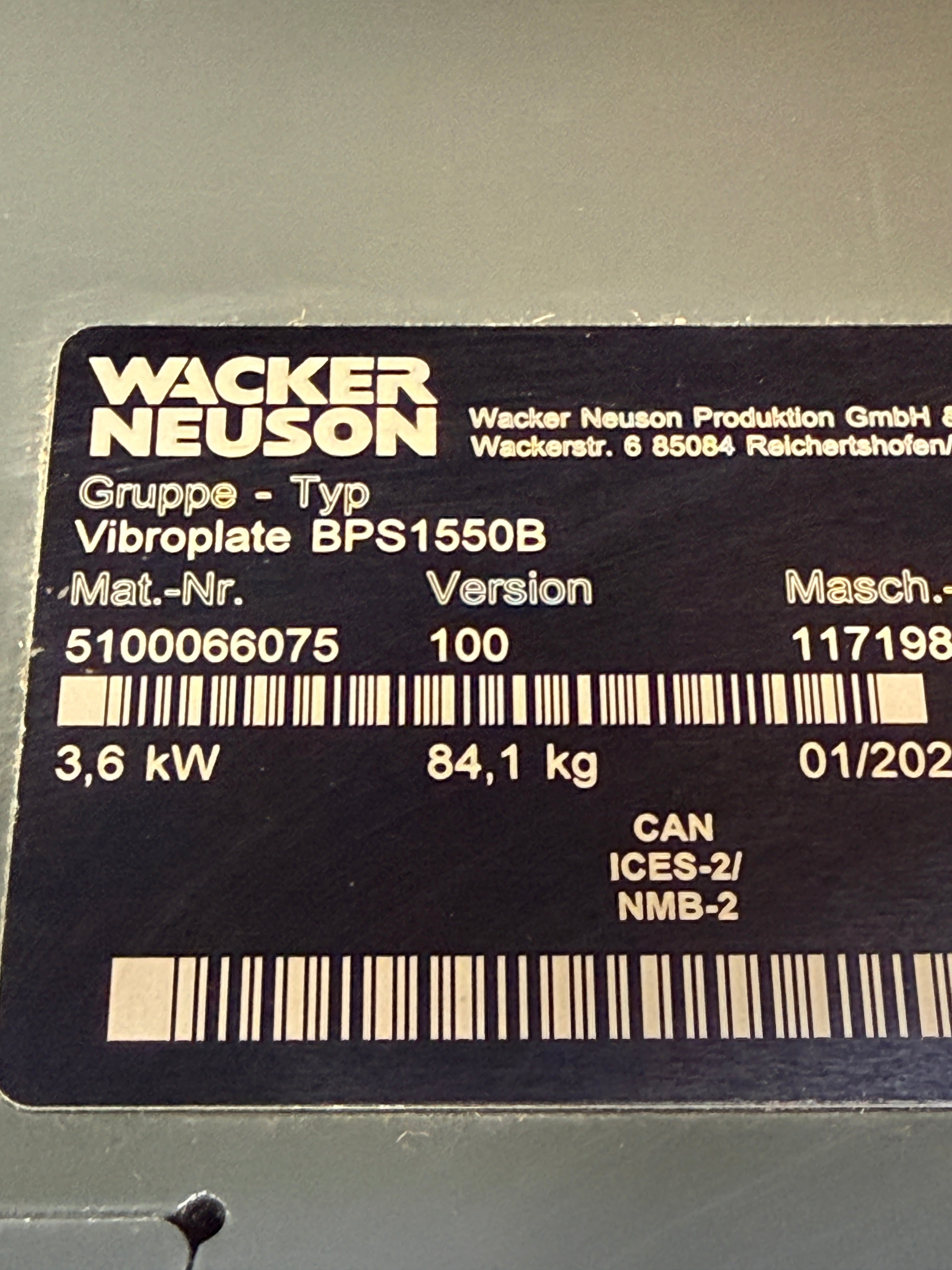

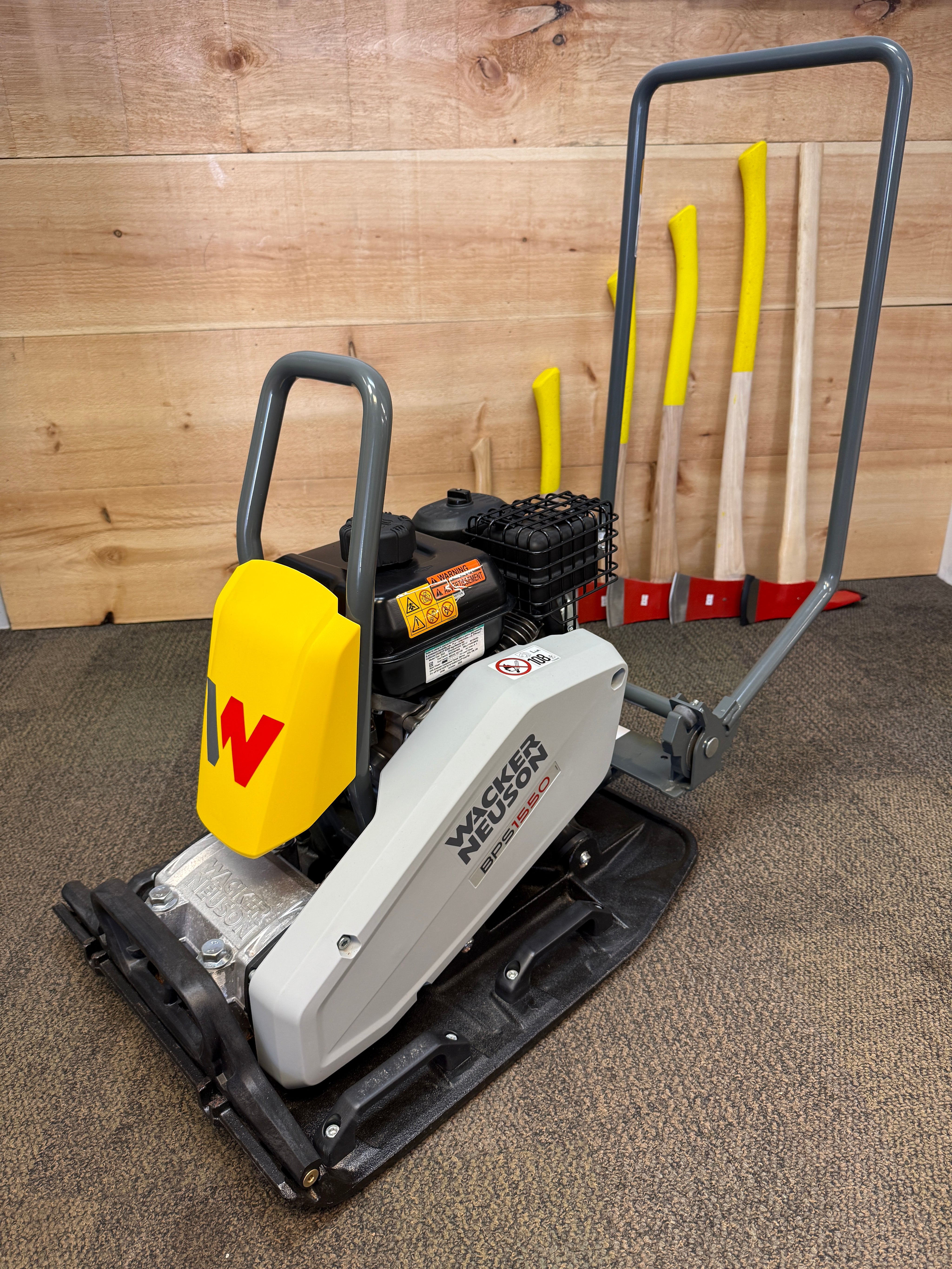

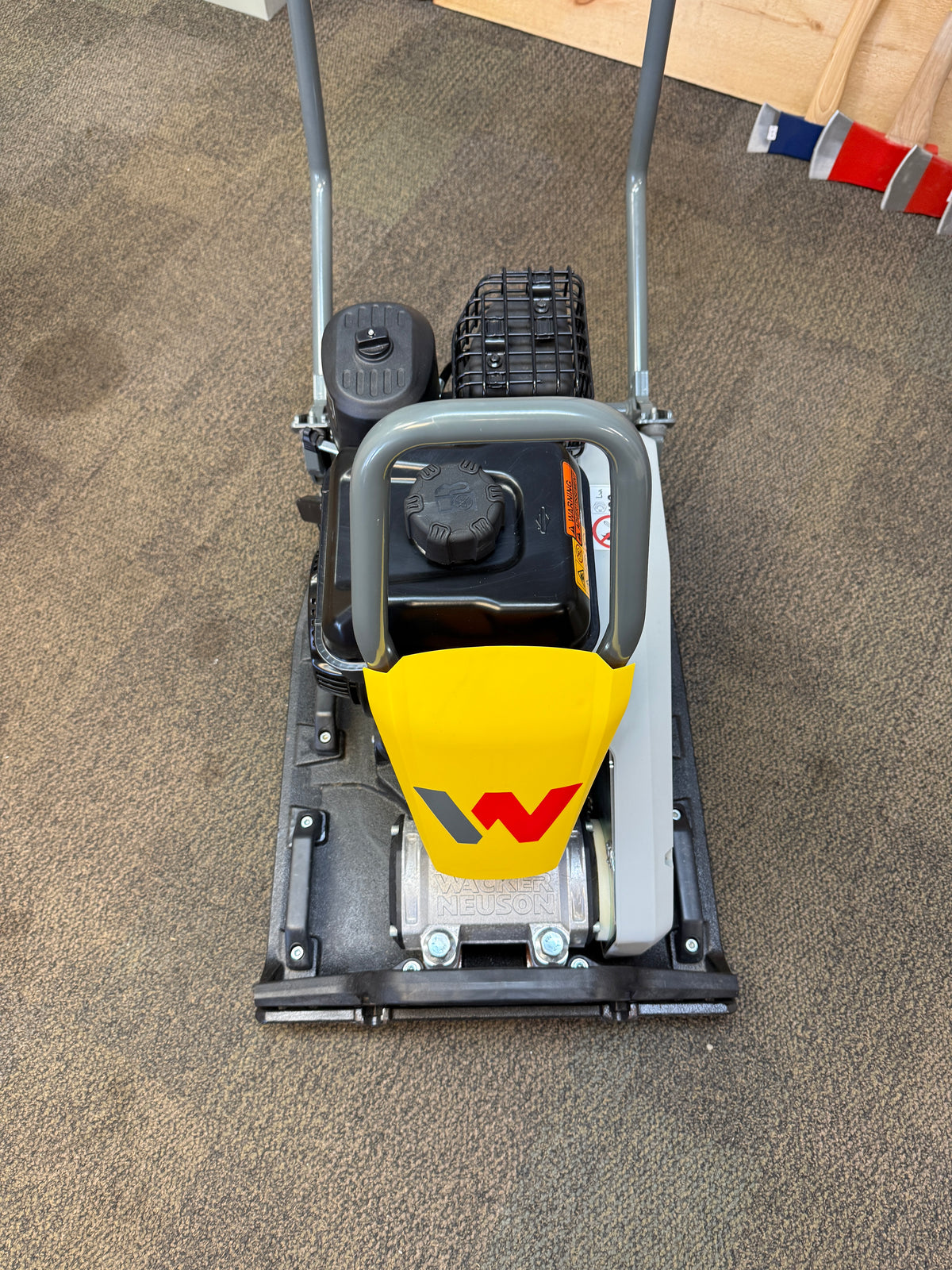

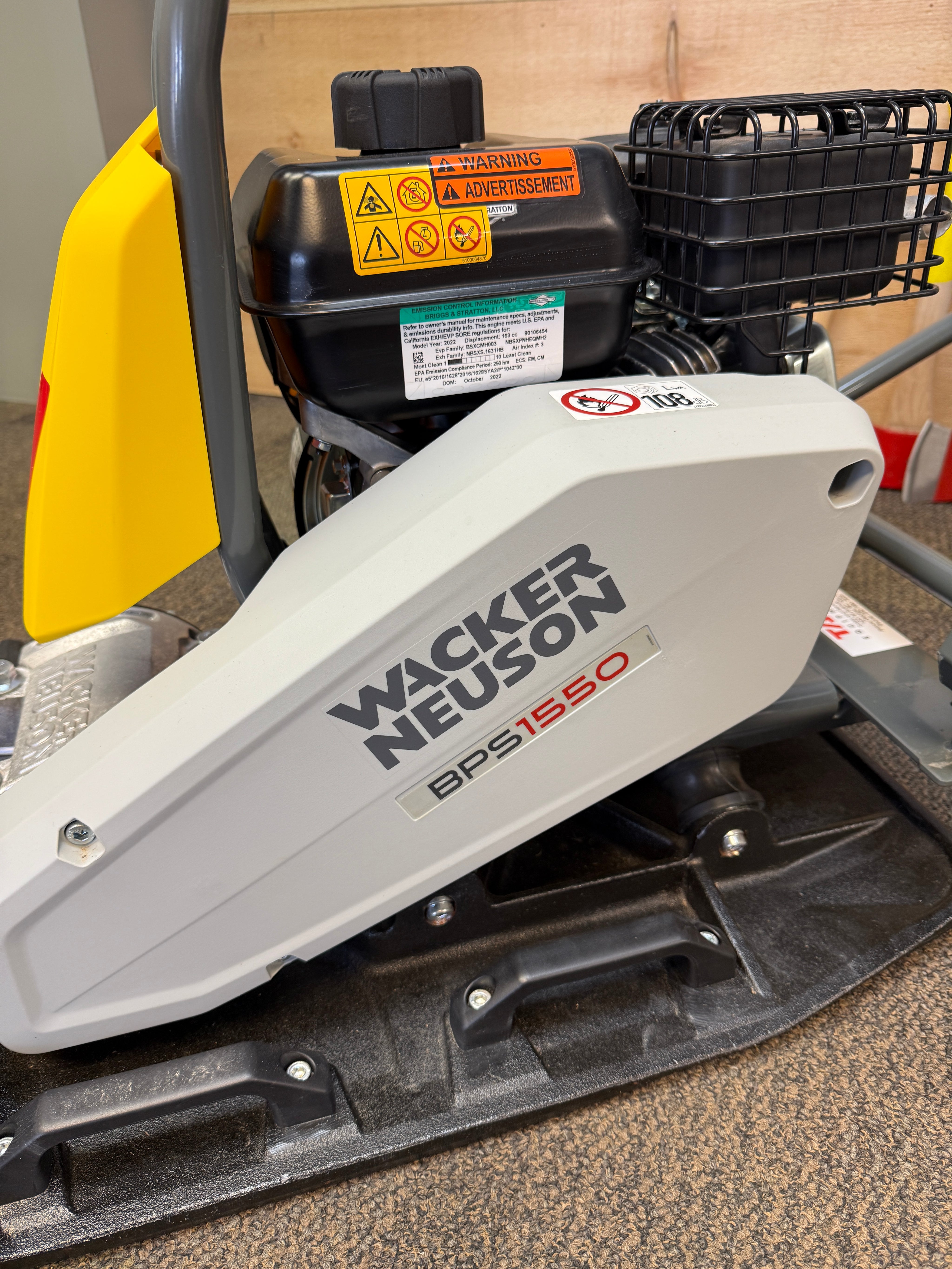

Wacker Neuson Single-direction vibratory plates BPS1550B

Single-direction vibratory plates BPS: Excellent handling and maneuverability on soil and asphalt

The BPS series is distinguished by its outstanding handling capabilities. Moving and turning these vibratory plates on fresh asphalt is unsurpassed in comfort and produces clean finishes with no marks. Even clean finishes at curbs are easy to produce due to the angular side edges of the base plate. The guide handle responds precisely to steering movements while still achieving low hand-arm vibrations of less than 5 m/s², which makes long and comfortable working conditions possible.

■ Mechanical - Output Details
Centrifugal force 15 kN
Area capacity 750.0 m2/h
Forward running 25.0 m/min
Gradeability 36.4 %
Vibrations (Hz) 98.0 Hz

■ Mechanical Details
Length Baseplate 599.0 mm
Width 500.0 mm
Width Baseplate 500.0 mm
Height 663.0 mm
Height Cover frame 663.0 mm
Thickness Baseplate 9.0 mm
Operating weight 84.1 kg
Ground clearance 663.0 mm

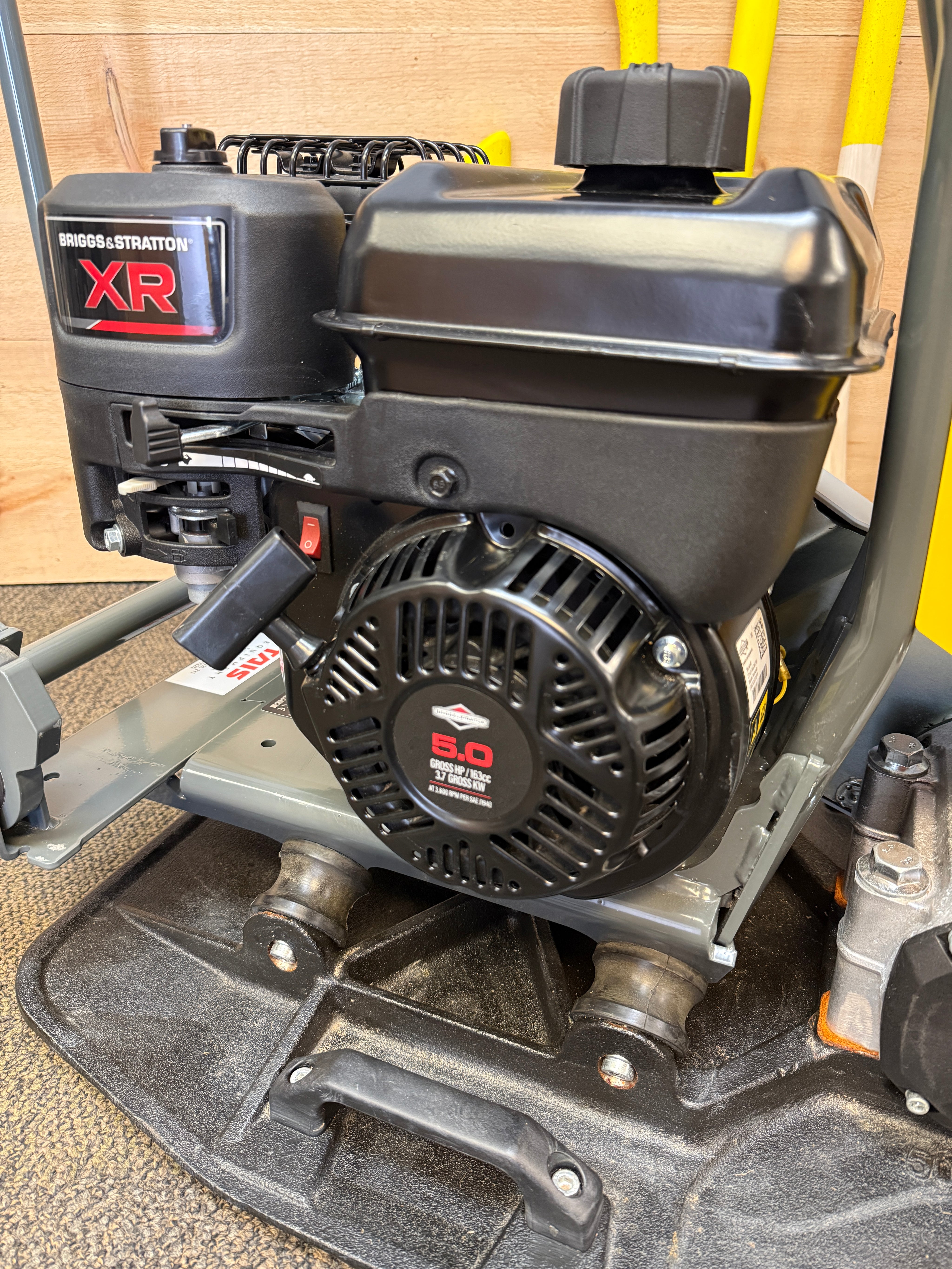

■ Engine
Effective power 3.6 KW
Nominal Engine speed 3,600.0 1/min

■ Environment Data
HAV summation (average value) 4.1 m/s2
HAV summation (Standard) EN 500-4
